High Performance Backend for Talk on Nextcloud with Docker

Talk:HPB

A High Performance Backend (HPB) requires a signalling service and consists of three components working hand in hand;

  1. STUN service (Session Traversal Utilities for NAT) for discovering NATed/firewalled external IP’s. Nextcloud provides a default STUN server but can be replaced with your own.
    • Examples: stun.nextcloud.com:443 or stun.yourdomain.tld:3478 or both
  2. TURN service (Traversal Using Relays around NAT) like “coturn” or “eturnal” for connecting NATed/firewalled external IP’s and controlling WebRTC streams. Its main role is to help WebRTC clients behind routers to communicate and relays the audio and video data through firewalls and port restrictions.
    • Examples: turn.yourdomain.tld:3478 or yourdomain.tld:3478
    • Encryption is optional for TURN & STUN and will be handled by encrypted Nextcloud
  3. WebRTC Signalling service like “Janus WebRTC server” or “Spreed WebRTC server” is required for calls and conversations with multiple participants. The signaling server is used to establish a WebSocket connection between the participants in the call. Without it, all participants would have to upload their own audio/video individually for each other participant causing connectivity issues.
    • Example: https://signal.yourdomain.tld

Self-hosting all three services is not as daunting as it seems and thanks to the folks at Nextcloud AIO is easily accomplished using their docker image.

This example will require Docker and a reverse proxy for forwarding and encrypting HTTP & WSS for port 8181 to https://signal.yourdomain.tld

Prepare router/firewall & reverse proxy

  • Allow inbound bypass for TURN & STUN on port 3478 tcp/udp which must be internet facing in router/firewall (i.e your.domain.tld:3478)
    • encryption is optional for TURN & STUN as it will be handled by encrypted Nextcloud
  • Set reverse proxy host for signal domain to forward and encrypt HTTP & WSS (Websockets Support) for port 8181 to https://signal.yourdomain.tld

TIP: create secretpasswordkey

Make sure you create a long secretpasswordkey (min. 24 chars, better 32 chars) for each service! Note down the secretpasswordkeys as you will need them for creating the Docker stack and for configuring HPB in Nextcloud talk.

  • issue command in host shell and repeat for each service:
openssl rand -hex 32

grafik

1. TURN_SECRET
  • create a long random secretpasswordkey, issue command in host shell:
openssl rand -hex 32
2. SIGNALING_SECRET
  • create a long random secretpasswordkey, issue command in host shell:
openssl rand -hex 32
3. INTERNAL_SECRET
  • create a long random secretpasswordkey, issue command in host shell:
openssl rand -hex 32

Create and run Docker Stack

  • or create a docker-compose.yaml in place and execute in docker
name: 'hpb'

services:

  nc-talk:
    container_name: talk_hpb
    image: ghcr.io/nextcloud-releases/aio-talk:latest
    init: true
    ports:
      - 3478:3478/tcp
      - 3478:3478/udp
      - 8181:8081/tcp
    environment:
      - NC_DOMAIN=cloud.yourdomain.tld
      - TALK_HOST=signal.yourdomain.tld
      - TURN_SECRET=secretpassword #this must be a long secretpasswordkey
      - SIGNALING_SECRET=secretpassword #this must be a long secretpasswordkey
      - TZ=Europe/Berlin
      - TALK_PORT=3478
      - INTERNAL_SECRET=secretpassword #this must be a long secretpasswordkey
    restart: unless-stopped
Upgrade Talk:HPB Docker image

Configure Nextcloud Talk

Example Nextcloud STUN configuration,

grafik

Example Nextcloud TURN configuration

grafik

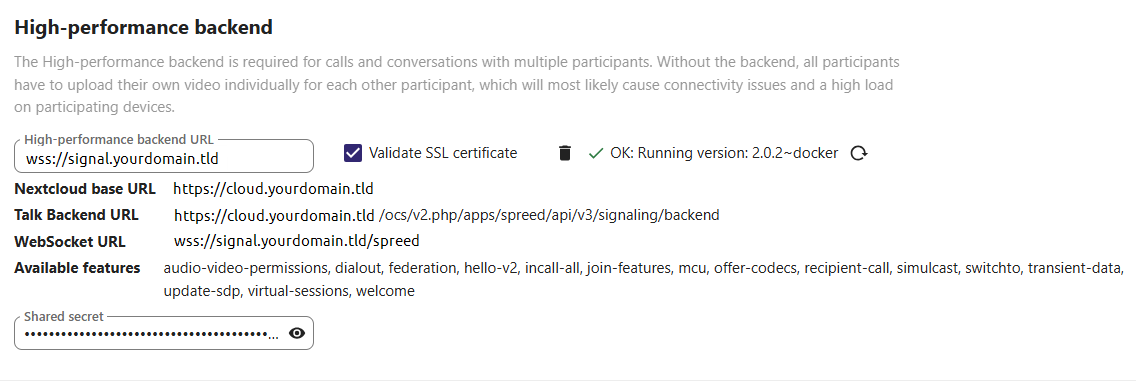

Examples Nextcloud HPB configuration

Example 1

grafik
grafik1136Ă—382 24.9 KB

Example 2
grafik

Reverse proxy documentation

Example NPM reverse proxy manager configuration"

grafik

Example Apache reverse proxy configuration"

for websocket upgrade (2.4.47 and later) in apache version

set

ProxyPass / http://192.168.2.xx:8181/ upgrade=websocket

and:

RequestHeader set X-Forwarded-Proto expr=%{REQUEST_SCHEME}
RequestHeader set X-Real-IP expr=%{REMOTE_ADDR}

as mentioned strukturag/nextcloud-spreed-signaling: Standalone signaling server for Nextcloud Talk.

or mod_proxy_wstunnel - Apache HTTP Server Version 2.4 and mod_proxy - Apache HTTP Server Version 2.4

Troubleshooting

connection errors

403 forbidden

TIP

make sure you have a long secretpasswordkey (min. 24 chars, better 32 chars) for each service!
