Помогите уже достал Nextcloud Docker Nginx

🌐 International support 🇷🇺 русский язык (russian)
,
1

У меня уже глаз начинает дёргаться, я новичок и у меня проблема с каким-то конфигурациями, неделю не могу разобраться, копировал разные от разных примеров и ничего толком не работает, сама проблема - по 80 порту все хорошо страница загружается полноценная с картинками и стилями и js, по 443 загружается только текст (во вложении).

config.php:

  'upgrade.disable-web' => true,
  'instanceid' => 'ocmqtk5rjgns',
  'trusted_proxies' =>
   array (
    0 => 'nextcloud',
    1 => '192.168.1.250',
    2 => 'nginx',
    3 => 'https://192.168.1.250',
    4 => '127.0.0.1',
    5 => '*.*.*.*',
    6 => '172.19.0.4'
   ),

nginx config:

upstream php-handler {
    server 127.0.0.1:9000;
}

server {
     listen 443 ssl;
     server_name 192.168.1.250;
#    root /var/www/html;
     index index.php;

ssl_certificate /etc/ssl/certs/self.crt;
ssl_certificate_key /etc/ssl/certs/self.key;

ssl_protocols TLSv1.2 TLSv1.3;
ssl_prefer_server_ciphers on;
ssl_ciphers "EECDH+CHACHA20:EECDH+AES128:RSA+AES128:EECDH+AES256:RSA+AES256:EECDH+3DES:RSA+3DES:!MD5";
ssl_ecdh_curve secp384r1;
ssl_session_cache shared:SSL:10m;
ssl_session_tickets off;
ssl_stapling off;
ssl_stapling_verify off;
resolver 8.8.8.8 8.8.4.4 valid=300s;
resolver_timeout 5s;

add_header Strict-Transport-Security "max-age=63072000; includeSubdomains";
add_header X-Frame-Options DENY;
add_header X-Content-Type-Options nosniff;
ssl_dhparam /etc/ssl/certs/dhparam.pem;

    location /nextcloud/ {
	       index index.php index.html;
            	proxy_pass http://nextcloud:80/;
            	proxy_set_header Host $host;
            	proxy_set_header X-Real-IP $remote_addr;
            	proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            	proxy_set_header X-Forwarded-Proto $scheme;
            	add_header Strict-Transport-Security "max-age=15552000; includeSubDomains" always;
    }

    location ~ \.php$ {
       fastcgi_pass 	php_4:9000;
       fastcgi_index 	index.php;
       fastcgi_param 	SCRIPT_FILENAME $document_root/$fastcgi_script_name;
       include 	fastcgi_params;
    }

}

docker yml

version: "2"
services:

  php_4:
    image: php:8.2-fpm
    container_name: php_4_nginx
    volumes:
      - ./data/nginx/www:/var/www
    restart: unless-stopped


  nginx:
    build:
     context: .
     dockerfile: Dockerfile_NGINX
    container_name: nginx_serv
    restart: unless-stopped
    volumes:
      - ./conf/nginx:/etc/nginx/conf.d
      - ./data/nginx/www:/var/www/html
    ports:
      - 192.168.1.250:80:80
      - 192.168.1.250:443:443
    command: "/bin/sh -c 'while :; do sleep 6h & wait $${!}; nginx -s reload; done & nginx -g \"daemon off;\"'"

  nextcloud:
    image: nextcloud
    container_name: nextcloud
    environment:
      - PUID=998
      - PGID=100
      - TZ=Europe/Moscow
    volumes:
      - ./conf/nextcloud:/var/www/html
    ports:
      - 8080:80
    restart: unless-stopped

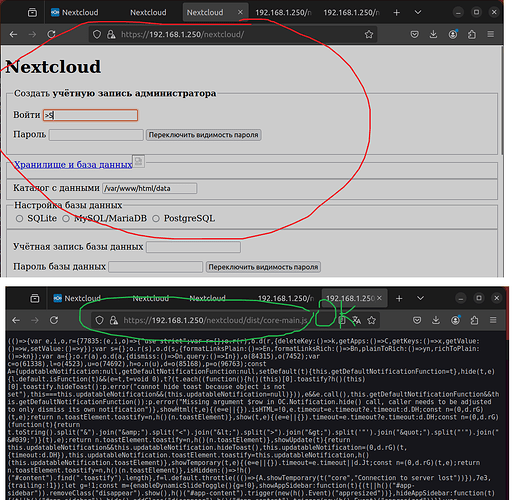

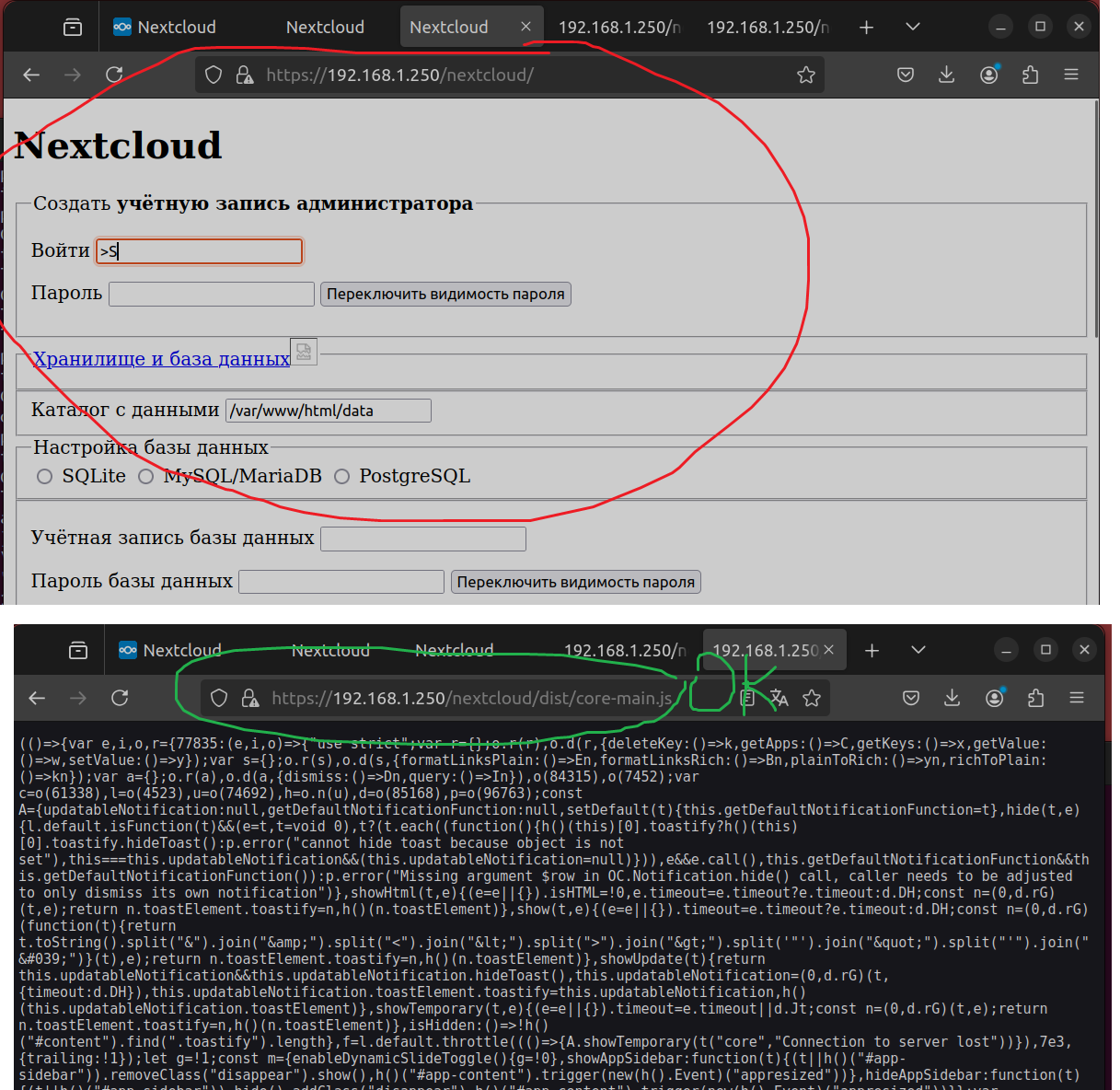

При этом css js по прямой ссылке доступны (видно из вложения)
Заранее спасибо за любую помощь в решении проблемы

1
11217×1184 346 KB

2

please look at good examples

at the first glance I see you are trying to access https://{ip address} which can never ever have valid public TLS certificate - likely your are using self-signed-certificate and suffer from well known problems caused by this configuration

your trusted proxies loos really weird - this should only have ip addresses/ranges without https:… *.*.*.* is completely invalid AFAIK - valid alternative would be 0.0.0.0.0/0 - if you want to completely ignore security measures applied to reverse rpoxy.

I would recommend you familiarize yourself with technologies you are using e.g. check the 101 topics especially 101: reverse proxy and trusted_proxies

3

Спасибо за ответ. Я поменял
config.php как вы и сказали:

 'upgrade.disable-web' => true,
  'instanceid' => 'ocmqtk5rjgns',
  'trusted_proxies' =>
   array (
    0 => '192.168.1.250',
    1 => '192.168.1.31',
    2 => '0.0.0.0/0'
   ),

добавил в конфигурацию nginx новые блоки

  upstream php-handler {
      server 127.0.0.1:9000;
  }


  map $arg_v $asset_immutable {
          "" "";
      default ", immutable";
      }

  server {
       listen 443 ssl;
       server_name 192.168.1.250;
       index index.php;

  ssl_certificate /etc/ssl/certs/self.crt;
  ssl_certificate_key /etc/ssl/certs/self.key;

  ssl_protocols TLSv1.2 TLSv1.3;
  ssl_prefer_server_ciphers on;
  ssl_ciphers "EECDH+CHACHA20:EECDH+AES128:RSA+AES128:EECDH+AES256:RSA+AES256:EECDH+3DES:RSA+3DES:!MD5";
  ssl_ecdh_curve secp384r1;
  ssl_session_cache shared:SSL:10m;
  ssl_session_tickets off;
  ssl_stapling off;
  ssl_stapling_verify off;
  resolver 8.8.8.8 8.8.4.4 valid=300s;
  resolver_timeout 5s;

  add_header Strict-Transport-Security "max-age=63072000; includeSubdomains";
  add_header X-Frame-Options DENY;
  add_header X-Content-Type-Options nosniff;
  ssl_dhparam /etc/ssl/certs/dhparam.pem;

    location /nextcloud/ {
	       index index.php index.html;
            	proxy_pass http://nextcloud:80/;
            	proxy_set_header Host $host;
            	proxy_set_header X-Real-IP $remote_addr;
            	proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            	proxy_set_header X-Forwarded-Proto $scheme;
            	add_header Strict-Transport-Security "max-age=15552000; includeSubDomains" always;
    }

        location ~ \.php(?:$|/) {
            # Required for legacy support
            rewrite ^/(?!index|remote|public|cron|core\/ajax\/update|status|ocs\/v[12]|updater\/.+|ocs-provider\/.+|.+\/richdocumentscode(_arm64)?\/proxy) /index.php$request_uri;

            fastcgi_split_path_info ^(.+?\.php)(/.*)$;
            set $path_info $fastcgi_path_info;

            try_files $fastcgi_script_name =404;

            include fastcgi_params;
            fastcgi_param SCRIPT_FILENAME $document_root$fastcgi_script_name;
            fastcgi_param PATH_INFO $path_info;
            fastcgi_param HTTPS on;

            fastcgi_param modHeadersAvailable true;         # Avoid sending the security headers twice
            fastcgi_param front_controller_active true;     # Enable pretty urls
            fastcgi_pass php-handler;

            fastcgi_intercept_errors on;
            fastcgi_request_buffering off;

            fastcgi_max_temp_file_size 0;
        }

        # Serve static files
        location ~ \.(?:css|js|mjs|svg|gif|ico|jpg|png|webp|wasm|tflite|map|ogg|flac)$ {
            try_files $uri /index.php$request_uri;
            add_header Cache-Control "public, max-age=15778463$asset_immutable";
            add_header Referrer-Policy                   "no-referrer"       always;
            add_header X-Content-Type-Options            "nosniff"           always;
            add_header X-Frame-Options                   "SAMEORIGIN"        always;
            add_header X-Permitted-Cross-Domain-Policies "none"              always;
            add_header X-Robots-Tag                      "noindex, nofollow" always;
            add_header X-XSS-Protection                  "1; mode=block"     always;
            access_log off;     # Optional: Don't log access to assets

            location ~ \.wasm$ {
                default_type application/wasm;
            }
        }

}

Проблема не ушла, страница по прежнему загружает только текст, но в логах nginx появилась интересная строка 404, которой раньше не было, данный файл есть в nextcloud я проверял:


nginx_serv   | 192.168.1.250 - - [18/Jan/2025:23:25:34 +0000] "GET /nextcloud/ HTTP/1.1" 200 2673 "-" "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:134.0) Gecko/20100101 Firefox/134.0" "-"

nginx_serv   | 192.168.1.250 - - [18/Jan/2025:23:25:35 +0000] "GET /apps/theming/css/default.css?v=ba222ded25d957b900c03bef914333cd HTTP/1.1" 404 153 "-" "Mozilla/5.0 (X11; Ubuntu; Linux x86_64; rv:134.0) Gecko/20100101 Firefox/134.0"

Помогите, пожалуйста, почему nginx не может получить доступ к css?

4

Heeelp me :sob:

5

I’m not an expert with Nginx but the official config looks other than yours. I would start there and continue searching through nginx topics - many times user posted working examples.

reading further maybe describes your issue: JavaScript (.js) or CSS (.css) files not served properly
