Moving this discussion from github.
Issue
TL;DR
Running Nextcloud behind dual reverse proxy through a VPS returns a blank 200 OK page.
I followed the steps on the reverse proxy documentation and noticed:
If you need HTTPS between Nextcloud and the reverse proxy because it is running on a different server in the same network, simply add another reverse proxy to the chain that runs on the same server like AIO and takes care of HTTPS proxying (most likely via self-signed certificates). Another option would be to create a VPN between the server that runs AIO and the server that runs the reverse proxy which takes care of encrypting the connection.
Everytime i open my subdomain.domain through browser or curl -vk it returns 200 OK with content-length: 0. However, accessing the server with curl -vk http://10.8.0.1:12000 from the VPS works perfectly. I’ve attached the outputs below. My guess is probably headers from either reverse proxy since I’m not familiar with those or TLS issues from Caddy reverse proxy.
I have other services that run through the same DNS, VPS & Nginx, Wireguard connection, and Docker perfectly fine. Note that I didn’t need to use Caddy for other services. I use Caddy as an additional reverse proxy on my Nextcloud server or Nextcloud would not work.
Sorry if it’s a bunch of logs and configs all at once, but I figured it would be necessary. I’ve looked everywhere but could not find any solution & would gladly send any more logs/info if needed!

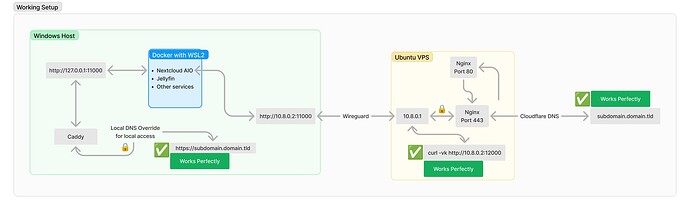

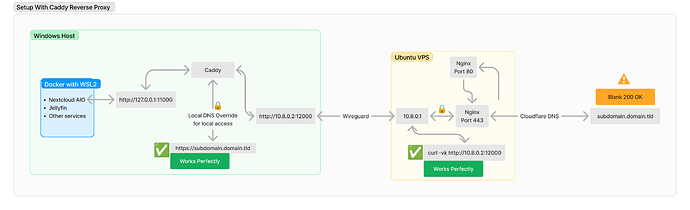

My setup
- DNS: Cloudflare (no Cloudflare proxy, rocket loader off for subdomain).
- VPS: DigitalOcean Ubuntu running Nginx
v1.26.0reverse proxy (UFW ports opened:80,443,51820, SSH port). TLS from certbot. - Wireguard on port
51820:- VPS
module v1.0.20210606 & tools v1.0.20210914with IP:10.8.0.1. - server
v0.5.3with IP10.8.0.2.
- VPS
- Server: Nextcloud AIO
v10.2.0on Docker Desktopv4.37.1 (178610)Windows with Caddyv2.8.4reverse Proxy as Windows service.
Nginx Config on VPS
map $http_upgrade $connection_upgrade {
default upgrade;
'' close;
}
server {
if ($scheme = "http") {
return 301 https://$host$request_uri;
}
if ($http_x_forwarded_proto = "http") {
return 301 https://$host$request_uri;
}
server_name <redacted subdomain.domain>;
listen 443 ssl;
listen [::]:443 ssl;
http2 on;
client_max_body_size 10G;
client_body_buffer_size 512k;
proxy_read_timeout 86400s;
# Debugging
access_log /var/log/nginx/files_access.log;
error_log /var/log/nginx/files_error.log debug;
location / {
proxy_pass http://10.8.0.2:12000; # I also tried with https here
proxy_ssl_verify off;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header X-Forwarded-Port $server_port;
proxy_set_header X-Forwarded-Scheme $scheme;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header Host $host;
proxy_set_header Early-Data $ssl_early_data;
chunked_transfer_encoding on;
proxy_buffering off;
proxy_request_buffering off;
# Websocket
proxy_http_version 1.1;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection $connection_upgrade;
}
# SSL config
ssl_certificate /etc/letsencrypt/live/<redacted subdomain.domain>/fullchain.pem; # managed by Certbot
ssl_certificate_key /etc/letsencrypt/live/<redacted subdomain.domain>/privkey.pem; # managed by Certbot
ssl_dhparam /etc/dhparam; # curl -L https://ssl-config.mozilla.org/ffdhe2048.txt -o /etc/dhparam
ssl_early_data on;
ssl_session_timeout 1d;
ssl_session_cache shared:SSL:10m;
ssl_protocols TLSv1.2 TLSv1.3;
ssl_ecdh_curve x25519:x448:secp521r1:secp384r1:secp256r1;
ssl_prefer_server_ciphers on;
ssl_conf_command Options PrioritizeChaCha;
ssl_ciphers TLS_AES_256_GCM_SHA384:TLS_CHACHA20_POLY1305_SHA256:TLS_AES_128_GCM_SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384:>
}
Wireguard Config
on VPS
[Interface]
Address = 10.8.0.1/24
MTU = 1400
SaveConfig = true
ListenPort = 51820
PrivateKey = <Private Key>
[Peer]
PublicKey = <Public Key>
AllowedIPs = 10.8.0.0/24, fdbe:5d93:caca::/64
Endpoint = <Server public IP behind CGNAT>
PersistentKeepalive = 25
on Server
[Interface]
PrivateKey = <Private Key>
Address = 10.8.0.2/24, fdbe:5d93:caca::1/64
MTU = 1400
Table = off
[Peer]
PublicKey = <Public Key>
AllowedIPs = 0.0.0.0/0, ::/0
Endpoint = <VPS public IP>
PersistentKeepalive = 25
Caddy Config
on windows service where docker AIO is also running
{
email <Redacted e-mail>
debug
}
# for local access
https://localhost:11000 {
redir /.well-known/carddav /remote.php/dav/ 301
redir /.well-known/caldav /remote.php/dav/ 301
reverse_proxy http://127.0.0.1:11000 {
# Pass the original Host header
header_up Host {host}
header_up X-Real-IP {remote}
}
tls internal
}
http://10.8.0.2:12000 { # I also tried with https here
redir /.well-known/carddav /remote.php/dav/ 301
redir /.well-known/caldav /remote.php/dav/ 301
reverse_proxy http://127.0.0.1:11000 {
# Pass the original Host header
header_up Host {host}
header_up X-Real-IP {remote}
}
}
AIO Docker-compose
services:
nextcloud-aio-mastercontainer:
image: nextcloud/all-in-one:latest
init: true
restart: always
container_name: nextcloud-aio-mastercontainer
volumes:
- nextcloud_aio_mastercontainer:/mnt/docker-aio-config
- /var/run/docker.sock:/var/run/docker.sock:ro
network_mode: bridge
ports:
- 8080:8080
environment:
APACHE_PORT: 11000
APACHE_IP_BINDING: 127.0.0.1
NEXTCLOUD_DATADIR: /run/desktop/mnt/host/d/ncdata
NEXTCLOUD_UPLOAD_LIMIT: 50G
NEXTCLOUD_MAX_TIME: 360000
NEXTCLOUD_MEMORY_LIMIT: 1024M
NEXTCLOUD_STARTUP_APPS: deck twofactor_totp tasks calendar contacts note
NEXTCLOUD_ADDITIONAL_APKS: imagemagick tesseract-ocr tesseract-ocr-data-eng ffmpeg libva-utils libva-vdpau-driver mesa-va-gallium
NEXTCLOUD_ADDITIONAL_PHP_EXTENSIONS: imagick
NEXTCLOUD_ENABLE_DRI_DEVICE: true
ENABLE_NVIDIA_GPU: true
SKIP_DOMAIN_VALIDATION: true
AIO_COMMUNITY_CONTAINERS: pi-hole jellyfin local-ai
Nextcloud Config
'trusted_proxies' => ['127.0.0.1', '::1', '<Docker WSL2 Subnet>', 'fdbe:5d93:caca::/64', '10.8.0.1', '10.8.0.2', '<Redacted VPS public IP>'],
'overwritehost' => '<Redacted subdomain.domain>',
'overwriteprotocol' => 'https',
'overwrite.cli.url' => 'https://<Redacted subdomain.domain>/'
'trusted_domains' => '[host.docker.internal, <Redacted subdomain.domain>]'
Debug Logs
Nginx files_error.log
Caddy.log
Nextcloud-aio-apache.log
Nextcloud-aio-mastercontainer.log
Curl from VPS.log
Wireguard on VPS.log
Thank you in advance! Would really appreciate any tips or advice.
better more logs and config than less.
