What is your Nextcloud Web UI speed?

[vbspam]

I left it with defaults. Redis is running and PHP is connected.

root@cloud:~# ss -tupan |grep 6379
tcp LISTEN 0 511 127.0.0.1:6379 0.0.0.0:* users:((“redis-server”,pid=183553,fd=6))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:37834 users:((“redis-server”,pid=183553,fd=24))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:38834 users:((“redis-server”,pid=183553,fd=34))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36684 users:((“redis-server”,pid=183553,fd=12))
tcp ESTAB 0 0 127.0.0.1:37870 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185360,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36706 users:((“redis-server”,pid=183553,fd=15))
tcp ESTAB 0 0 127.0.0.1:36640 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185342,fd=8))
tcp ESTAB 0 0 127.0.0.1:36696 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185348,fd=8))
tcp ESTAB 0 0 127.0.0.1:36668 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185343,fd=10))
tcp ESTAB 0 0 127.0.0.1:37840 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185358,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:58722 users:((“redis-server”,pid=183553,fd=20))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:58728 users:((“redis-server”,pid=183553,fd=21))
tcp ESTAB 0 0 127.0.0.1:36684 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185346,fd=8))
tcp ESTAB 0 0 127.0.0.1:36686 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185347,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:37854 users:((“redis-server”,pid=183553,fd=26))
tcp ESTAB 0 0 127.0.0.1:58720 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185353,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36668 users:((“redis-server”,pid=183553,fd=11))
tcp ESTAB 0 0 127.0.0.1:55782 127.0.0.1:6379 users:((“php-fpm8.1”,pid=193826,fd=8))
tcp ESTAB 0 0 127.0.0.1:58746 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185379,fd=8))
tcp ESTAB 0 0 127.0.0.1:36712 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185350,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:37826 users:((“redis-server”,pid=183553,fd=23))
tcp ESTAB 0 0 127.0.0.1:36656 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185344,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36696 users:((“redis-server”,pid=183553,fd=14))
tcp ESTAB 0 0 127.0.0.1:36720 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185351,fd=8))
tcp ESTAB 0 0 127.0.0.1:37834 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185345,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:58746 users:((“redis-server”,pid=183553,fd=28))
tcp ESTAB 0 0 127.0.0.1:58728 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185355,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36686 users:((“redis-server”,pid=183553,fd=13))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36656 users:((“redis-server”,pid=183553,fd=10))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:37822 users:((“redis-server”,pid=183553,fd=22))
tcp ESTAB 0 0 127.0.0.1:60294 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185394,fd=8))
tcp ESTAB 0 0 127.0.0.1:37822 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185356,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36778 users:((“redis-server”,pid=183553,fd=30))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:37870 users:((“redis-server”,pid=183553,fd=27))
tcp ESTAB 0 0 127.0.0.1:36778 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185474,fd=8))
tcp ESTAB 0 0 127.0.0.1:37826 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185357,fd=8))
tcp ESTAB 0 0 127.0.0.1:49202 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185480,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:37840 users:((“redis-server”,pid=183553,fd=25))
tcp ESTAB 0 0 127.0.0.1:58706 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185352,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36720 users:((“redis-server”,pid=183553,fd=17))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:58706 users:((“redis-server”,pid=183553,fd=18))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36640 users:((“redis-server”,pid=183553,fd=9))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36628 users:((“redis-server”,pid=183553,fd=8))
tcp ESTAB 0 0 127.0.0.1:36628 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185341,fd=10))
tcp ESTAB 0 0 127.0.0.1:40408 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185482,fd=8))
tcp ESTAB 0 0 127.0.0.1:58722 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185354,fd=8))
tcp ESTAB 0 0 127.0.0.1:40404 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185481,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:49202 users:((“redis-server”,pid=183553,fd=31))
tcp ESTAB 0 0 127.0.0.1:36706 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185349,fd=8))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:55782 users:((“redis-server”,pid=183553,fd=35))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:60294 users:((“redis-server”,pid=183553,fd=29))
tcp ESTAB 0 0 127.0.0.1:37854 127.0.0.1:6379 users:((“php-fpm8.1”,pid=185359,fd=10))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:58720 users:((“redis-server”,pid=183553,fd=19))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:36712 users:((“redis-server”,pid=183553,fd=16))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:40408 users:((“redis-server”,pid=183553,fd=33))
tcp ESTAB 0 0 127.0.0.1:6379 127.0.0.1:40404 users:((“redis-server”,pid=183553,fd=32))
tcp ESTAB 0 0 127.0.0.1:38834 127.0.0.1:6379 users:((“php-fpm8.1”,pid=193825,fd=8))
tcp LISTEN 0 511 [::1]:6379 [::]:* users:((“redis-server”,pid=183553,fd=7))

[vbspam]

@BlueBee

You have compression enables on your server?

Yes

@BlueBee

Recommendation (if not taken care of yet):
Please install all required PHP modules.

Already fixed

[Dennis1993]

Nice tool!
I’ve tracked my cloud too.

Unfortunately, I always find the Web GUI very slow, even though I have implemented all the performance optimizations. Unfortunately, other sites are always quite sluggish.

Here is my result. The loading time for my users is usually between 6-9 seconds. We mainly use the cloud internally in-house and are all connected via 1 GBit/s. The server has 6 CPU cores and 16 GB RAM. PHP 8.2 with MariaDB 10.11 on Ubuntu 20.04 with NC 27.1.6

How does so much idleness come about here?

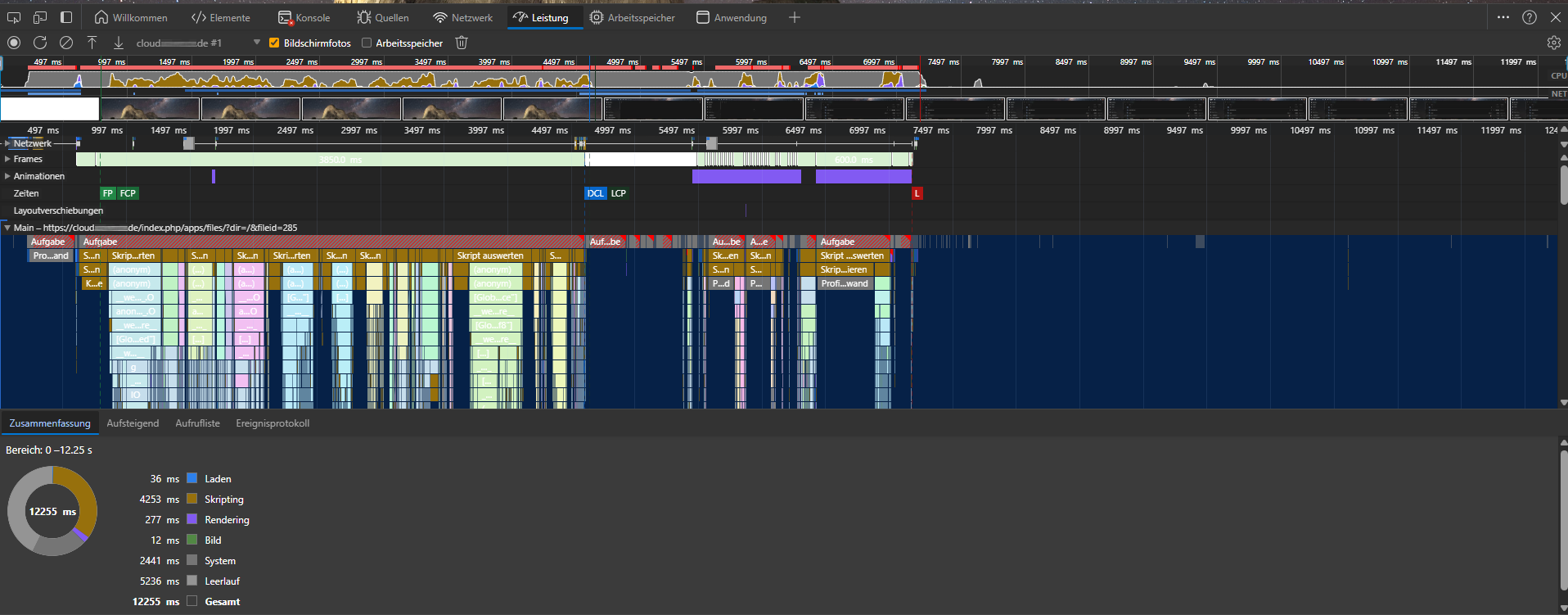

Second test:

The biggest block is “scripting”.

Thanks for tipps!

[BlueBee]

How did you configure the Background Jobs?
by AJAX, or by Cron?

Cron is the recommended one.

• An other fact is that wireless network are slower than cabled network.
• The performance of a proxy server can affect load performance of Nextcloud on the page!
• To analyze a possible decrease of network congestion can be analyzed with Wireshark.
• looking at the recorded times of Individual modules, scripting etc, that 'process during the loading time of the webpage can be very misleading.
• Just keep track of the ‘loading time’ of the page. You will find the loading time at the bottom of the F12 page of you browser. The loading time is is actually all about the user experience of the page.

The dashboard of my instance, the loading time is: 4.41 on average
The Files page of the instance, the loading time is about 4.21 on average.
Measured with cabled network. NC instance 6GB RAM 3200MHz, AMD 5600G processor, virtualized, processor AES-NI enabled. no encryption for file storage, push client enabled, 10 users, external storage - no NFS, self hosted on a shared server.

I consider it as completely normal.

[dugite-code]

A few more things to explore:

Syslog based logging

Nextclouds file based logging has been a source of bottle neck for me in the past so I switched to syslog for Nextcloud.

NOTE this will break the Web GUI log reader

php occ log:manage --level=error --backend=syslog

"log_type" => "syslog",
"logfile" => "",
"loglevel" => 3,

DNS issues

Sometimes DNS issues can cause your server to slow down significantly

Nextcloud in Docker - some pages take significant amount of time to load

I found the root cause. The problem was that I had DNS not accessible from my Docker containers, so I assume Nextcloud tried to make some requests to the internet and it was timing out eventually, that’s why it took so long to load some pages. I spent some time to google and finally found the answer - it was a configuration problem with PiHole on my host system. I just needed to uncomment below line in /etc/resolvconf.conf: nameserver 127.0.0.1 Here is a detailed description - Solve DNS Resol…

Incorrect system time

If your servers time sync is out of wack it can cause any number of issues resulting in perceived slow downs. Ensure your system clock is updating correctly

[vbspam]

Cron, every 5 mins

[vbspam]

I do not use syslog.

DNS works fine.

System time is NTP network synced and looks ok.

[dugite-code]

I do not use syslog.

The main reason I switched to syslog rather than Nexcloud’s file logging was due to my old server’s bottle neck being my storage medium (less of an issue now I use NVME). This locked up my DB significantly increasing DB query times and that was causing my frontend to slow down significantly.

There a bunch of items to consider based on information you haven’t provided yet:

• What storage medium are you using?
• What hardware are you using? (CPU, RAM ect)
• What’s your deployment method? (Docker, Bare metal, ect)
• How’s your RAM utilization? (i.e. are you dumping to swap too much?)

[vbspam]

@dugite-code

• What storage medium are you using?

SSD

@dugite-code

• What hardware are you using? (CPU, RAM ect)

i7, 16GB ram, SSD drive

@dugite-code

• What’s your deployment method? (Docker, Bare metal, ect)

Bare metal along with LXD configured with ext4 dir storage

@dugite-code

• How’s your RAM utilization? (i.e. are you dumping to swap too much?)
