Slow upload speed (max 1MB/s - 18.0.6 & 19.0.1 )

Hi with older versions of NC i never had issues with upload speed, unfortunately i cant say when this happens first time ( i think all was ok till NC 18 ) but now every upload to the cloud reaches a max speed of 1MB/s most of upload time its between 100KB/s - 500KB/s.
Previously upload speed was over 10MB/s. It doesnt matter if its many small or a single large file, the speed is always slow like described. (Webinterface, Downloading Files, Deleting Files etc. runs fast , only upload is affected)

I tried a lot of things to find the bottleneck or a reason for this.

  • checked I/O and performance of HDD —> OK (0.1-0.5%)

  • checked CPU Load —> OK (0.15-0.20)

  • checked network interfaces

  • checked network speed of server: OK —> (Down: ~350Mbit , Up: ~350 Mbit)

  • Checked log files: no errors in nextcloud.log & php.log & apache.err log

  • Disabled: httpd2 —> no change

  • Disabled: php-fpm → no change

  • Disabled: mod_requesttimout —> no change

  • Disabled all nextcloud apps —> no change

  • Run occ repair command —> no change

  • Upgraded to NC version 19.01 —> no change

  • Downgraded Apache to 2.4.41.1 → no change

  • Changed upload temp dir to a ram disk → no change

  • Upload a lot of big image files on same server to a wordpress runs fast.

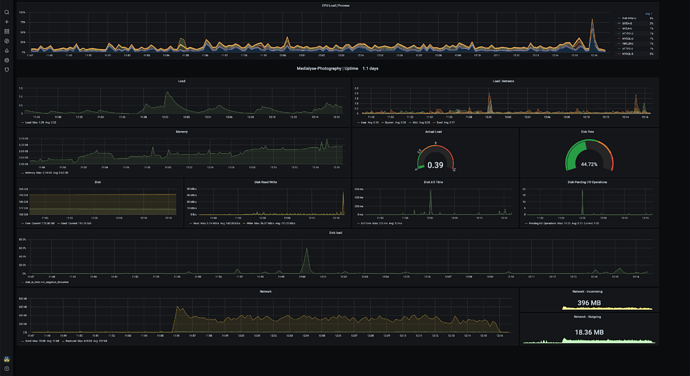

A Screenshot from system monitoring while uploading a 350 MB zip file, as you can see there is nothing special to see, the peak you see in the end is just the reload from Grafana-Dashboard.

Bildschirmfoto 2020-07-30 um 12.17.16

—-

Server configuration detail

*Operating system: Centos7 * Linux 3.10.0-1127.13.1.el7.x86_64 #1 SMP Tue Jun 23 15:46:38 UTC 2020 x86_64

Webserver: Apache/2.4.43 (codeit) OpenSSL/1.1.1g (fpm-fcgi)

Database: mysql 10.3.23

PHP version: 7.3.20

Modules loaded: Core, date, libxml, openssl, pcre, zlib, filter, hash, Reflection, SPL, session, standard, cgi-fcgi, bcmath, bz2, calendar, ctype, curl, dom, mbstring, fileinfo, ftp, gd, gettext, gmp, iconv, intl, json, ldap, exif, mysqlnd, PDO, Phar, posix, pspell, shmop, SimpleXML, sockets, sodium, sqlite3, sysvmsg, sysvsem, sysvshm, tidy, tokenizer, xml, xmlwriter, xsl, mcrypt, mysqli, pdo_mysql, pdo_sqlite, wddx, xmlreader, apcu, geoip, igbinary, imagick, zip, redis, Zend OPcache

Nextcloud version: 19.0.1 - 19.0.1.1

Updated from an older Nextcloud/ownCloud or fresh install:

Enabled:
 - accessibility: 1.5.0
 - activity: 2.12.0
 - admin_audit: 1.9.0
 - announcementcenter: 3.8.1
 - audioplayer: 2.11.0
 - calendar: 2.0.3
 - circles: 0.19.3
 - cloud_federation_api: 1.2.0
 - comments: 1.9.0
 - contacts: 3.3.0
 - contactsinteraction: 1.0.0
 - dav: 1.15.0
 - deck: 1.0.5
 - documentserver_community: 0.1.7
 - event_update_notification: 1.0.2
 - external: 3.6.0
 - extract: 1.2.4
 - federatedfilesharing: 1.9.0
 - federation: 1.9.0
 - files: 1.14.0
 - files_downloadactivity: 1.8.0
 - files_markdown: 2.3.0
 - files_pdfviewer: 1.8.0
 - files_rightclick: 0.16.0
 - files_sharing: 1.11.0
 - files_trashbin: 1.9.0
 - files_versions: 1.12.0
 - files_videoplayer: 1.8.0
 - firstrunwizard: 2.8.0
 - logreader: 2.4.0
 - lookup_server_connector: 1.7.0
 - nextcloud_announcements: 1.8.0
 - notifications: 2.7.0
 - oauth2: 1.7.0
 - onlyoffice: 4.3.0
 - password_policy: 1.9.1
 - photos: 1.1.0
 - polls: 1.4.3
 - privacy: 1.3.0
 - provisioning_api: 1.9.0
 - quota_warning: 1.8.0
 - serverinfo: 1.9.0
 - settings: 1.1.0
 - sharebymail: 1.9.0
 - spreed: 9.0.2
 - support: 1.2.1
 - survey_client: 1.7.0
 - text: 3.0.1
 - theming: 1.10.0
 - theming_customcss: 1.6.0
 - twofactor_backupcodes: 1.8.0
 - updatenotification: 1.9.0
 - viewer: 1.3.0
 - workflowengine: 2.1.0
Disabled:
 - encryption
 - files_external
 - groupfolders
 - radio
 - recommendations
 - systemtags
 - user_ldap

{
    "updatechecker": false,
    "instanceid": "***REMOVED SENSITIVE VALUE***",
    "passwordsalt": "***REMOVED SENSITIVE VALUE***",
    "secret": "***REMOVED SENSITIVE VALUE***",
    "trusted_domains": [
        "cloud.domain.de",
        "www.cloud.domain.de"
    ],
    "datadirectory": "***REMOVED SENSITIVE VALUE***",
    "overwrite.cli.url": "https:\/\/cloud.domain.de",
    "dbtype": "mysql",
    "version": "19.0.1.1",
    "dbname": "***REMOVED SENSITIVE VALUE***",
    "dbhost": "***REMOVED SENSITIVE VALUE***",
    "dbtableprefix": "oc_",
    "dbuser": "***REMOVED SENSITIVE VALUE***",
    "dbpassword": "***REMOVED SENSITIVE VALUE***",
    "logtimezone": "Europe\/Berlin",
    "installed": true,
    "mail_smtpmode": "smtp",
    "mail_from_address": "***REMOVED SENSITIVE VALUE***",
    "mail_domain": "***REMOVED SENSITIVE VALUE***",
    "mail_smtphost": "***REMOVED SENSITIVE VALUE***",
    "loglevel": 2,
    "memcache.local": "\\OC\\Memcache\\APCu",
    "memcache.locking": "\\OC\\Memcache\\Redis",
    "redis": {
        "host": "***REMOVED SENSITIVE VALUE***",
        "port": 6379
    },
    "theme": "",
    "maintenance": false,
    "filelocking.enabled": true,
    "appstore.experimental.enabled": false,
    "preview_libreoffice_path": "\/usr\/bin\/libreoffice",
    "enable_previews": true,
    "log_type": "owncloud",
    "logfile": "\/clouddata\/owncloud.log",
    "log_authfailip": true,
    "log_query": false,
    "log_rotate_size": 52428800,
    "htaccess.RewriteBase": "\/",
    "updater.release.channel": "stable",
    "mysql.utf8mb4": true,
    "integrity.check.disabled": false,
    "app_install_overwrite": [
        "radio",
        "contacts",
        "polls",
        "circles"
    ],
    "updater.secret": "***REMOVED SENSITIVE VALUE***"
}

External storages: files_external is disabled

Encryption: no

User-backends:

  • OC\User\Database

—-

I dont know if its a nextcloud problem, but for me it seems so because other services on same server runs fast as usual. I hope someone could help.

Thanks in advanced :slightly_smiling_face:

UPDATE:

This incredible slow upload speed was a hosting problem, the hoster moved server to another cluster and voila… i can now upload with 2MB/s in Nextcloud and 4MB/s via SFTP.

Question is the same… why is upload speed so slow in Nextcloud… server has nearly no load.
What can i do to increase the upload speed to Nextcloud ? Any ideas ?

Same issue here…
Until 3.0.1 speed was great.
Direct download from the server gets 10Mbps, since 3.0.1 big file comes at mare 200kbps.

Something is going on with the client.

Well, if it is a virtual server, you share the hardware with other users but you only see your part. And many are overselling their resources. What is strange if other services are fast…
