this one is the closest to your requirement.

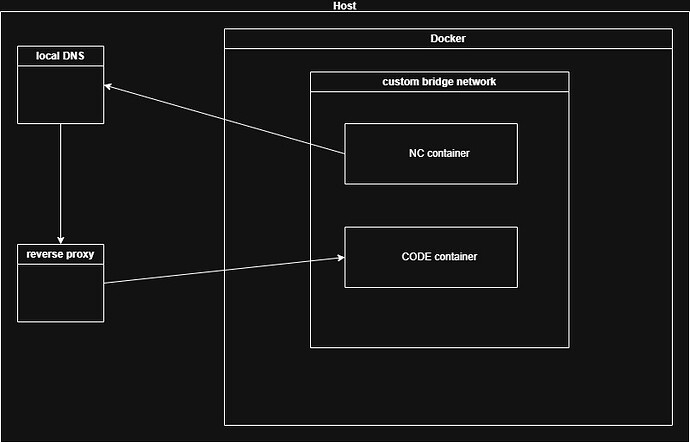

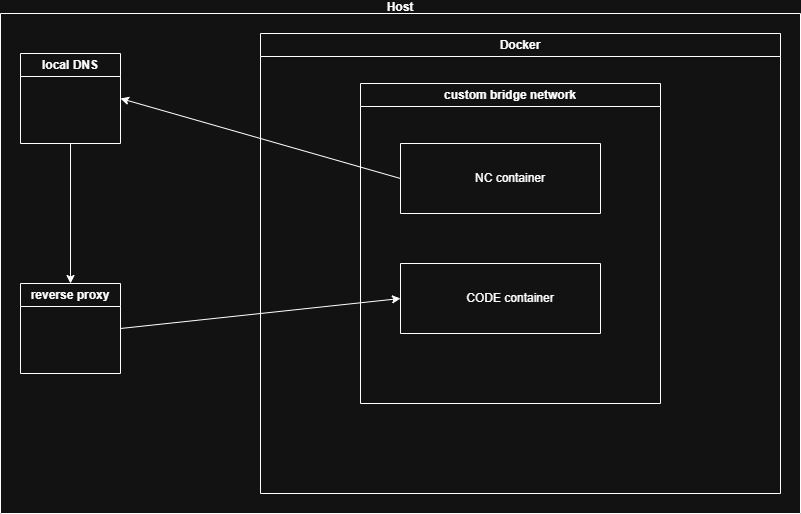

doesn’t look complete for me.. using a dns might result in issues - I never find motivation to troubleshoot but from my experience docker container on same host can’t talk to each other using external networking - probably one has to adopt iptable rules.. but maybe it works if reverse proxy runs on a separate host. your drawing would result in Nextcloud accessing CODE through hosts network (NC -> Docker Network -> host network -> reverse proxy -> CODE)

I would describe more like this

flowchart LR

router_firewall[router_firewall<br>port forward<br>external:443 to server:443]

subgraph internal_network
  clientint(inside client)
  clientint-- https:// nextcloudurl<br>192.168.1.24:443 -->RP;
  clientint-- https:// collaboraurl<br>192.168.1.24:443 -->RP;
  Collabora-- https:// nextcloudurl -->RP;
  Nextcloud-- https:// collaboraurl -->RP;
  dnsint[pihole, adGuard, etc.]
  subgraph server
	  RP(reverse proxy<br>container<br>expose:443)
		Nextcloud(Nextcloud<br>container)
		Collabora(Collabora<br>container)

	end
end
clientint-- dns:nextcloudurl -->dnsint;
clientint-- dns:collaboraurl -->dnsint;
dnsint-- ip:192.168.1.24 -->clientint;

router_firewall-- tcp/443 -->RP;
RP-- plain http -->Nextcloud
RP-- plain http -->Collabora

the solution in Probably DNS help with NC Docker + Collabora + Wireguard tunnel - #5 by wwe shows the case NC, CODE and ReverseProxy run on the same docker host and NC and CODE can reach reverse proxy using the respective URL - adopt to your needs.
