Are there any Architectural diagrams (HLD - high level diagrams)?

🏷️ General
1

I have no support/technical question and have seen the support category. (Be aware that direct support questions will be deleted.)

on

Which general topic do you have

Are there any diagrams that illustrate how a self-hosted option would look? If I wanted to build this on AWS, what components/resources/services would I need?

Something like this?

Uploading: arch.RichieBartlett.com-files.RichieBartlett.com.drawio.png…

2

look at

and related atricles.

1 Like
3

AWS hosted NextCloud Infra HLD

4

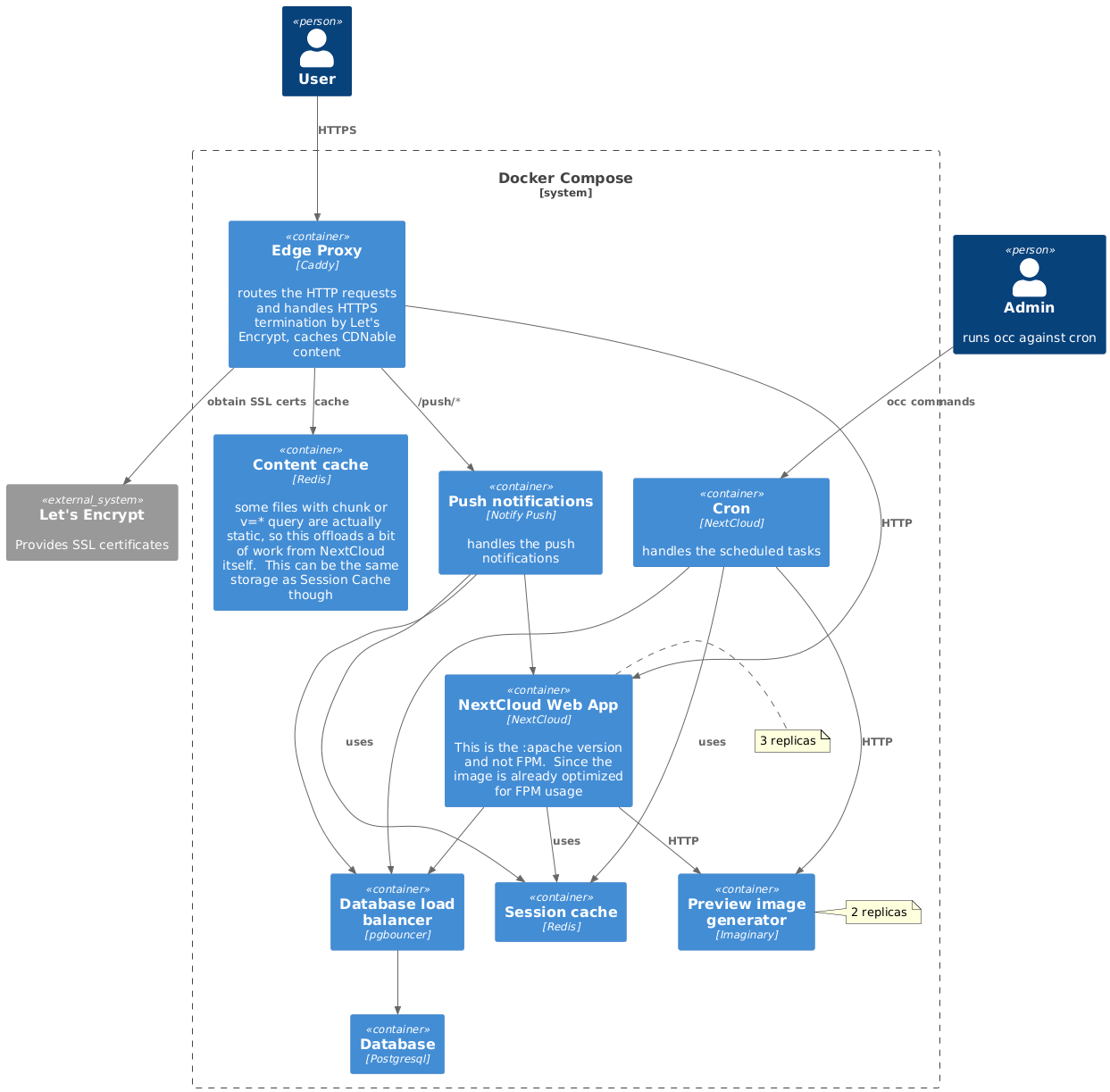

Mine presently looks like this

In my case the content cache and session cache are just one container though because it is running in a Pi and I just wanted to have less containers for now. The Nextcloud is also replicable along with the Imaginary containers. So technically if I had more than one Pi and connect them into Docker swarm it can distribute the work more easily.

Technically I should’ve started with the C4 system context diagram, but it’s pretty boring since it’s just a single Pi and practically everything is in docker compose including Caddy

I’m debating on putting in Elastic Search for Full Text Search but I am not sure how useful it is on my setup right now because it’s just family photo sharing for the most part and morbid curiosity on the other part.

UPDATE: I tweaked it a bit right now where the /remote.php/dav/* operations are sent to another container separate from the main next cloud, I think I like that technique since I can tune based on specific operations.

1 Like
