AIO installation - what is going on with port 443?

[unrehabilitatedtroll]

The Basics

• Nextcloud Server version (e.g., 29.x.x):
  • Nextcloud AIO v11.9.0
• Operating system and version (e.g., Ubuntu 24.04):
  • Arch
• Web server and version (e.g, Apache 2.4.25):
  • N/A
• Reverse proxy and version _(e.g. nginx 1.27.2)
  • N/A
• PHP version (e.g, 8.3):
  • • N/A
• Is this the first time you’ve seen this error? (Yes / No):
  • yes
• When did this problem seem to first start?
  • upon installation
• Installation method (e.g. AlO, NCP, Bare Metal/Archive, etc.)
  • AIO
• Are you using CloudfIare, mod_security, or similar? (Yes / No)
  • no

Summary of the issue you are facing:

I have ports 80 and 443 forwarded on my router to my internal server.

After installing AIO I authenticate to 127.0.0.1:8080. Enter my domain name under “New AIO Instance”, and receive the following error:

The domain is not reachable on Port 443 from within this container. Have you opened port 443/tcp in your router/firewall? If yes is the problem most likely that the router or firewall forbids local access to your domain. You can work around that by setting up a local DNS-server.

navigate browser to https://127.0.0.1:443 and receive the following error:

navigate browser to http://127.0.0.1:443 and receive the following in my browser:

I have verified there are no port conflicts on my internal server.

I have verified my domain name works because I can reach the admin UI of my router from public.

Steps to replicate it (hint: details matter!):

1. Install Docker container with following script:

2. # For Linux and without a web server or reverse proxy (like Apache, Nginx, Caddy, Cloudflare Tunnel and else) already in place:
   sudo docker run \
   --init \
   --sig-proxy=false \
   --name nextcloud-aio-mastercontainer \
   --restart always \
   --publish 80:80 \
   --publish 8080:8080 \
   --publish 8443:8443 \
   --volume nextcloud_aio_mastercontainer:/mnt/docker-aio-config \
   --volume /var/run/docker.sock:/var/run/docker.sock:ro \
   ghcr.io/nextcloud-releases/all-in-one:latest


3. Authenticate to AIO on http://127.0.0.1:8080

4. Enter my domain name under “New AIO Instance”

[wwe]

Hello @unrehabilitatedtroll,

welcome to the Nextcloud community!

@unrehabilitatedtroll

I have ports 80 and 443 forwarded on my router to my internal server.

@unrehabilitatedtroll

navigate browser to https://127.0.0.1:443

doesn’t really match

@unrehabilitatedtroll

--publish 8443:8443 \

this makes your contianer listen on port :8443 - is this intended?

At the end your AiO installation must be accessible from everywhere - from internet and from inside of the container- at https://cloud.yourdomain.tld:443 by default (reverse proxy etc are different) - ips don’t really matter. Sometimes it fails because of strange router setting like rebind_protection

[hap]

I’m planning to make a longer post about this, but I struggled for hours yesterday to get a web-facing NextCloud AIO instance set up on Linux Mint. No reverse proxies or local DNS tools (like Pi-hole, Dnsmasq, etc.) were involved, yet I kept getting the same Port 443 error as you. I finally just set skip domain verification to True, and happily enough, I was able to access NextCloud just fine.

[unrehabilitatedtroll]

With regard to the host, it does not matter if I use the DDNS name for my router; the private IP for my server, or sitting on the server using the localhost address. Here is the ACL in the router port forwarding:

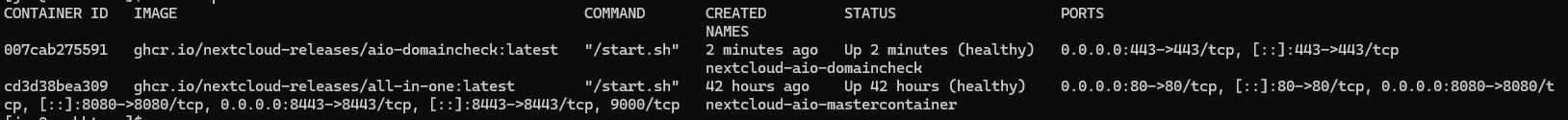

I copied the run command from the Nextcloud AIO page on git. Here is the outputs of docker ps:

At any rate, I rm’d everything and ran the command below, then was able to access the container over port 443.

sudo docker run
–init
–sig-proxy=false
–name nextcloud-aio-mastercontainer
–restart always
–publish 80:80
–publish 8080:8080
–publish 8443:8443
–volume nextcloud_aio_mastercontainer:/mnt/docker-aio-config
–volume /var/run/docker.sock:/var/run/docker.sock:ro
–env NEXTCLOUD_MOUNT=“”
–env SKIP_DOMAIN_VALIDATION=true
nextcloud/all-in-one:latest

[hap]

Glad you were able to get in also! I wonder if there’s some sort of bug with the domain validation code. At least it all seemed to work out in the end

[hap]

Hi WWE, thanks for all the assistance you provide on these forums–I’ve found your posts to be very helpful in better understanding NextCloud.

The --publish 8443:8443 \ line can be found within the NextCloud blog post for installing AIO on Linux as well as the official GitHub AIO instructions. Would it be better to have the container listen on port 443 (e.g. via --publish 443:443 \)? I don’t know enough about networking to answer this question, but I imagine that you do!

[unrehabilitatedtroll]

I was wondering the same thing, @wwe asked if it was intentional. I just followed the AIO install guidance on git.

[wwe]

@hap

Would it be better to have the container listen on port 443 (e.g. via --publish 443:443 \)?

sorry it’s my fault I will never get this weird AiO stuff - I always forget the mastercontainer and apache container are different things

At the end this is how default AiO Installation should look like

flowchart LR

   fritz.box(router<br>192.168.179.1);

   fritz.box-- port forward<br>tcp/3478<br>udp/3478 -->TALK
   fritz.box-- port forward<br>tcp/443 -->NC;
		subgraph intLAN[internal_network]
		 subgraph docker
				master[mastercontainer<br>:8080 - mgmt interface <br>:8443 - mgmt interface<br>:80 - ACME http challenge];
				NC[APACHE_PORT<br><br>https:// nc.mydomain.tld:443];
				TALK[TALK_PORT<br>:tcp/3478<br>:udp/3478];
			end
		end

[hap]

No worries! So just to confirm, is the --publish 8443:8443 step in the AIO instructions correct? Or should we replace 8443 with 443? (I’m guessing that 8443 is a Docker-specific port, but I could be wrong.)

[wwe]

port 8443 is used for the management interface

If your firewall/router has port 80 and 8443 open/forwarded and you point a domain to your server, you can get a valid certificate automatically by opening the Nextcloud AIO Interface via:
https://your-domain-that-points-to-this-server.tld:8443

the --publish parameter of the mastercontainer is only relevant for the management. the application itself - it is using port :443 but this is managed by the mastercontainer when it creates the application/apache container (use env variable APACHE_PORT if you want to adjust it).

[hap]

Got it–thanks for clarifying that!
