Hi,
Same troubles for me.
Having nextcloud-aio and npm on same host, both with docker.
On NPM side => Error 502 Bad gateway accessing by nc.mydomaine.fr
On Nextcloud-AIO side => verifying domain => Error : Domain does not point to this server or the reverse proxy is not configured correctly.
Here is my nextcloud-AIO docker compose file :
services:
nextcloud-aio-mastercontainer:
image: ghcr.io/nextcloud-releases/all-in-one:latest
init: true
restart: always
container_name: nextcloud-aio-mastercontainer # This line is not allowed to be changed as otherwise AIO will not work correctly
volumes:
- nextcloud_aio_mastercontainer:/mnt/docker-aio-config # This line is not allowed to be changed as otherwise the built-in backup solution will not work
- /var/run/docker.sock:/var/run/docker.sock:ro
network_mode: bridge
ports:
- 8080:8080 # This is the AIO interface, served via https and self-signed certificate.
environment:
APACHE_PORT: 11000 # Is needed when running behind a reverse proxy
APACHE_IP_BINDING: 127.0.0.1 # Should be set when running behind a reverse proxy running on the same host.
APACHE_ADDITIONAL_NETWORK: nginx-network # Needed when behind a reverse proxy running in a different docker network on same server.
NEXTCLOUD_DATADIR: /mnt/ncdata # Allows to set the host directory for Nextcloud's datadir
NEXTCLOUD_UPLOAD_LIMIT: 16G
NEXTCLOUD_MAX_TIME: 3600
NEXTCLOUD_MEMORY_LIMIT: 2000M
volumes:
nextcloud_aio_mastercontainer:
name: nextcloud_aio_mastercontainer # This line is not allowed to be changed as otherwise the built-in backup solution will not work
And here is my NPM docker compose file :
services:
app:
image: 'jc21/nginx-proxy-manager:latest'
restart: unless-stopped
ports:
# These ports are in format <host-port>:<container-port>
- '80:80' # Public HTTP Port
- '443:443' # Public HTTPS Port
- '127.0.0.1:81:81' # Admin Web Port
# Add any other Stream port you want to expose
# - '21:21' # FTP
environment:
# Use nginx service under this account (not root) inside docker container
# Need to be 0 or ROOT for nextcloud-aio
PUID: 0
PGID: 0
# Postgres parameters:
DB_POSTGRES_HOST: 'db'
DB_POSTGRES_PORT: '5432'
DB_POSTGRES_USER: 'nginx-pm'
DB_POSTGRES_PASSWORD: 'xxxxxxxxxx'
DB_POSTGRES_NAME: 'npm-db'
DISABLE_IPV6: 'true'
volumes:
- ./data:/data
- ./letsencrypt:/etc/letsencrypt
depends_on:
- db
db:
image: postgres:latest
restart: always
environment:
POSTGRES_USER: 'nginx-pm'
POSTGRES_PASSWORD: 'xxxxxxxxxxxxxxxx'
POSTGRES_DB: 'npm-db'
volumes:
- ./postgres:/var/lib/postgresql/data
networks:
default:
external: true
name: nginx-network
nextcloud-aio:
external: true
As you can see, I have followed instructions for having reverse proxy in an another docker container :
- On nextcloud side
APACHE_ADDITIONAL_NETWORK: nginx-network
- On NPM side
networks:
default:
external: true
name: nginx-network
nextcloud-aio:
external: true

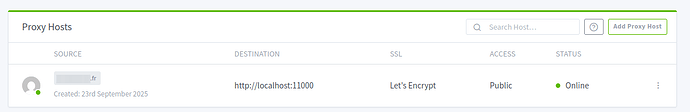

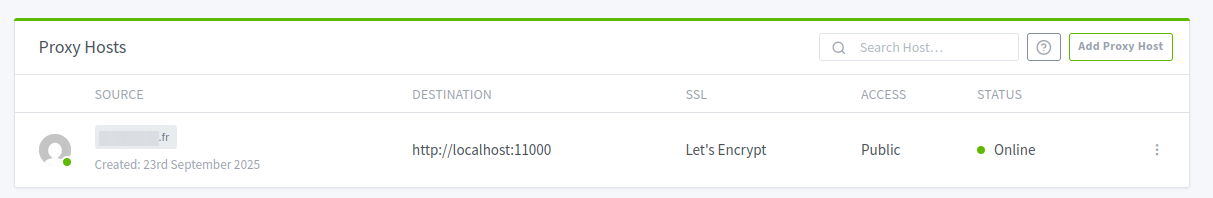

Proxy host on NPM is configured as expected I think :
So what’s the matter ? thanks for your help.
Regards
