How-To: nextcloud-aio-mastercontainer via own SSL secured domain behind traefik proxy

ℹ️ Support 📦 Appliances (Docker, Snappy, VM, NCP, AIO)
, , , ,
1

Good evening from Germany :waving_hand: :germany:

I was trying to run Nextcloud-AIO without exposing the nextcloud-aio-mastercontainer with a self-signed certificate on <HOST_IP>:8080.

By default, nextcloud-aio-mastercontainer exposes port 8080 to be available at the initial setup:

$ docker ps -f name=nextcloud-aio-mastercontainer
CONTAINER ID   IMAGE                         COMMAND       CREATED         STATUS                   PORTS                                                NAMES
a1f6cb51bb98   nextcloud/all-in-one:latest   "/start.sh"   2 minutes ago   Up 2 minutes (healthy)   80/tcp, 8443/tcp, 9000/tcp, 0.0.0.0:8080->8080/tcp   nextcloud-aio-mastercontainer

So far, so good.

I want to deploy Nextcloud via my own domain, a valid SSL certificate, and traefik (v3.6) as my reverse proxy.

I would like to show you how I was able to set up Nextcloud in this way.

Nextcloud-AIO docker-compose.yml

---
services:
  nextcloud-aio-mastercontainer:
    container_name: nextcloud-aio-mastercontainer
    environment:
      APACHE_ADDITIONAL_NETWORK: traefik_ext # Add external Traefik network to 'nextcloud-aio-apache'
      APACHE_IP_BINDING: "127.0.0.1" # Prevent 'nextcloud-aio-apache' to expose APACHE_PORT globally
      APACHE_PORT: 11000
    image: nextcloud/all-in-one:latest
    init: true
    labels: # Enable Traefik
      - "traefik.enable=true"
    networks:
      - traefik_ext # Add external Traefik network
    restart: unless-stopped
    volumes:
      - nextcloud_aio_mastercontainer:/mnt/docker-aio-config
      - /var/run/docker.sock:/var/run/docker.sock:ro

networks:
  traefik_ext: # Add external Traefik network
    external: true
volumes:
  nextcloud_aio_mastercontainer:
    name: nextcloud_aio_mastercontainer

Traefik dynamic config for nc-aio-mastercontainer and nc-aio-apache

root@nextcloud:/opt/docker-traefik# cat conf/dynamic/container_nextcloud-aio.yml

---
http:
  routers:
    nextcloud:
      entrypoints:
        - websecure
      middlewares:
        - default
      # rule: 'Host(`your.nextcloud.domain.tld`)' # Nextcloud Domain name directly
      rule: 'Host(`{{ env "DOMAIN_NEXTCLOUD" }}`)' # DOMAIN_NEXTCLOUD is defined in traefik's .env file
      service: nextcloud
      tls:
        certresolver: cloudflare # or any certresolver of your choice
    nextcloud-mc:
      entrypoints:
        - websecure
      middlewares:
        - default
      # rule: 'Host(`your.mastercontainer.domain.tld`)' # Mastercontainer Domain name directly
      rule: 'Host(`{{ env "DOMAIN_NEXTCLOUD_MC" }}`)' # DOMAIN_NEXTCLOUD_MC is defined in traefik's .env file
      service: nextcloud-mc
      tls:
        certresolver: cloudflare # or any certresolver of your choice

  serversTransports:
    skip-insecure-ssl-nextcloud-mc: # Required to ignore mastercontainer's self-sigend certificate error
      insecureSkipVerify: true
      serverName: "nextcloud-aio-mastercontainer"

  services:
    nextcloud:
      loadBalancer:
        servers:
          - url: "http://nextcloud-aio-apache:11000" # 11000 should match 'APACHE_PORT'
    nextcloud-mc:
      loadBalancer:
        servers:
          - url: "https://nextcloud-aio-mastercontainer:8080"
        serversTransport: skip-insecure-ssl-nextcloud-mc # references serversTransports rule

Result

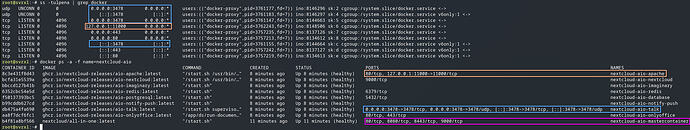

This configuration means that no ports other than port 80, 443 (exposed by Traefik), and the ports required by Nextcloud Talk are exposed.

grafik
grafik1920×364 210 KB

Even the Open Nextcloud AIO Interface button under settings/admin/overview works as expected: How to easily log in to the AIO interface

I couldn’t find any productive examples, documentation, or forum threads describing such a configuration, so I hope I haven’t forgotten anything.

Feedback is welcome.
